Bench Anchors to Concrete

Product Information

features/benefits

Protect your garden bench from thieves and vandals with this anchor kit suitable for installation into concrete Suitable for all outdoor timber furniture Supplied with standard and tamperproof screws

Components: 2 x bench brackets, 2 x expanding bolts, 4 x cross point screws, 4 x anti-vandal screws, 2 x security caps {dimensions} 100mm long rawl bolts

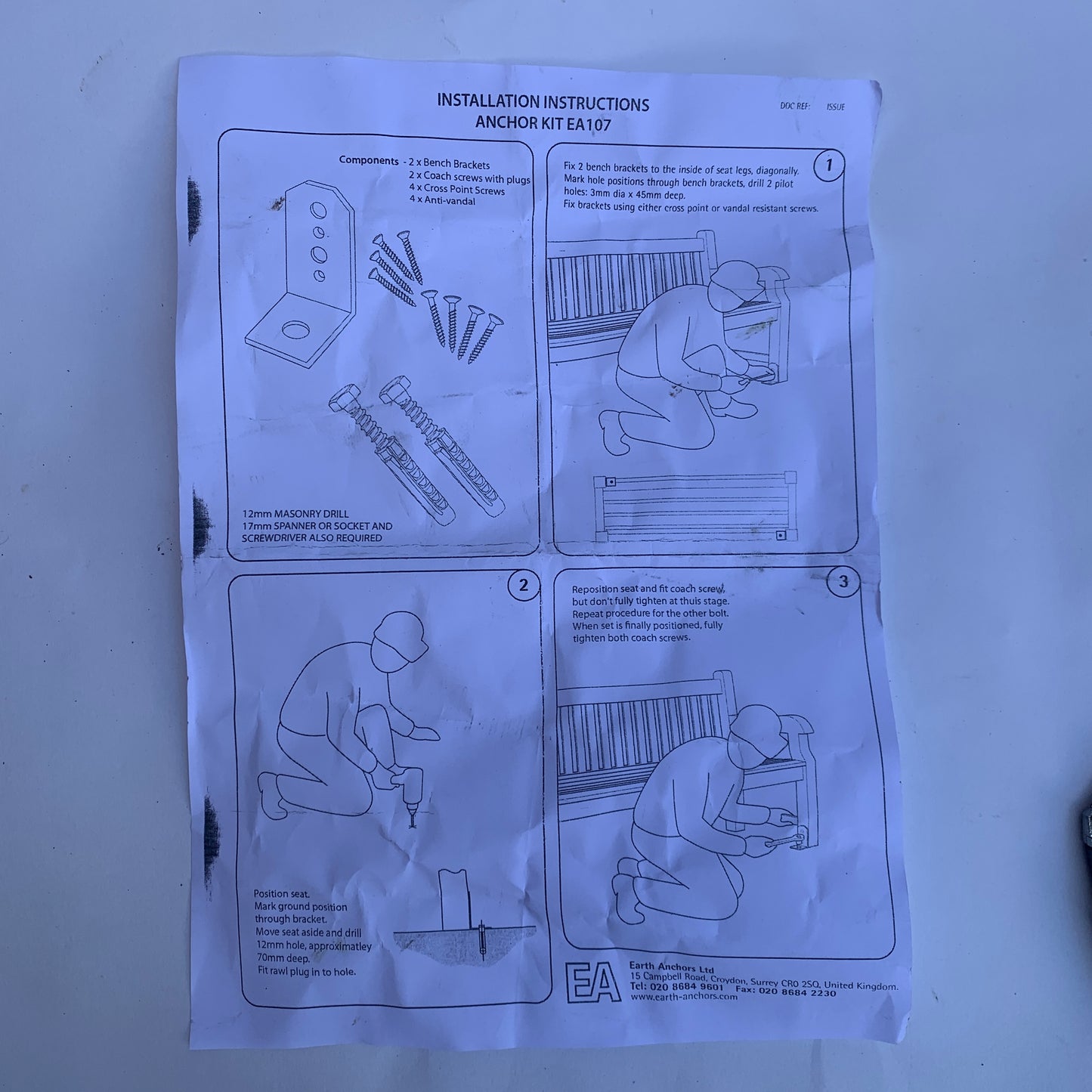

installation

Tools required: 12mm masonry drill, 19mm socket and screwdriver.

1) the concrete base has to be laid first and allowed to set for at least a week before fixing the anchor kit
2) the concrete base should a minimum of 100mm thick
3) if you are fixing the anchor kit yourself you will require a hammer drill with a 12mm masonry bit
4) first fix the bench brackets to diagonally opposite bench legs
5) predrill the wooden legs first with a drill bit smaller than the screws
6) fix the bench brackets with either cross point or vandal resistant screws
7) mark on the concrete where the expanding bolts are to be drilled
8) move the bench aside
9) drill 12mm holes approximately 110mm deep
10) apply a little wd40 to the expanding bolts
11) push them into hole and unscrew/remove the bolt
12) move bench back into position
13) replace the bolts and tighten
